Case Study

eLearning Course

Turning a static company-values PDF into a narrated, animated Storyline course — one that closes by handing each learner a personalized, printable reflection built from their own answers.

Role: Learning Technologist / Learning Experience Developer / eLearning Developer / Web Designer
Primary Tools: Articulate Storyline · HTML · JavaScript
Focus: Instructional Design · Custom UI/UX · Animation · Reflection

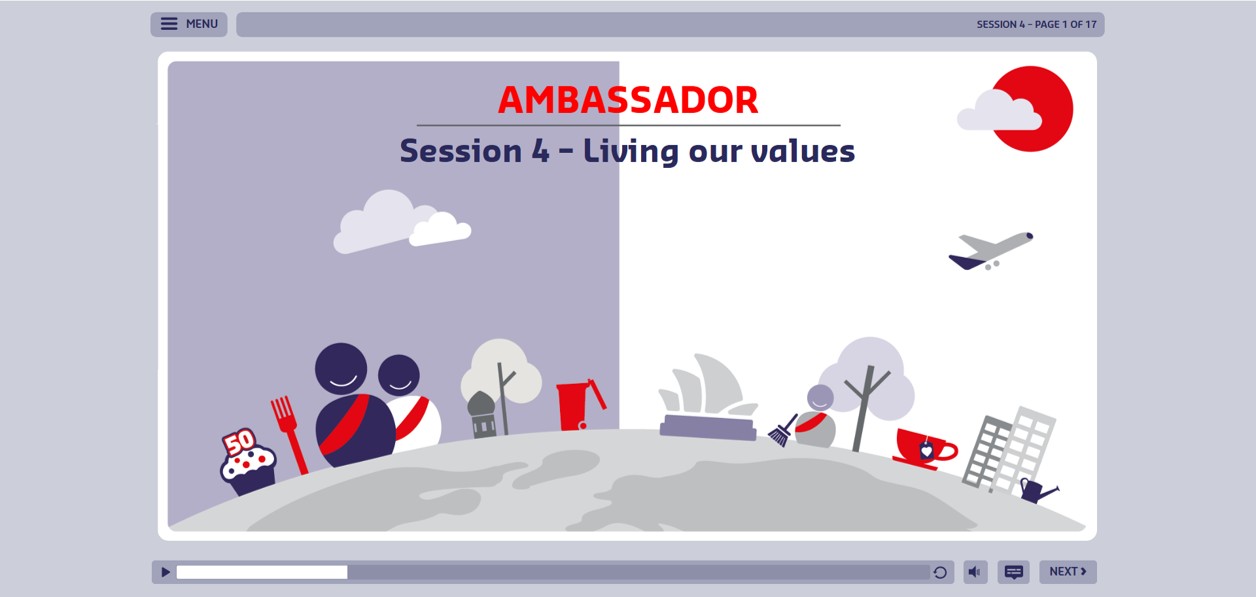

The course title screen for Ambassador, Session 4, Living our values, with a custom illustrated interface — The course opens with a custom illustrated interface built from an initial visual mockup.

The Challenge

A PDF resource with information and graphics about company values was the starting point. The challenge was to turn that source material into an engaging digital experience — not just a read-and-click-next course.

My Approach

I reviewed the source material and built a content outline, script, and storyboard that translated the information into a cohesive experience — planning where narration, animation, on-screen text, graphics, and reflection activities would work together to reinforce the key concepts.

I then designed a visual mockup for the overall UI/UX and used it as the foundation. The final course was developed in Articulate Storyline with a custom interface and interactive elements built to keep learners engaged.

Course Design & Learner Experience

The course paired voice-over narration with animated graphics and text timed to the narration. Rather than large blocks of text to read, it revealed information progressively and used movement and visual emphasis to support the spoken content.

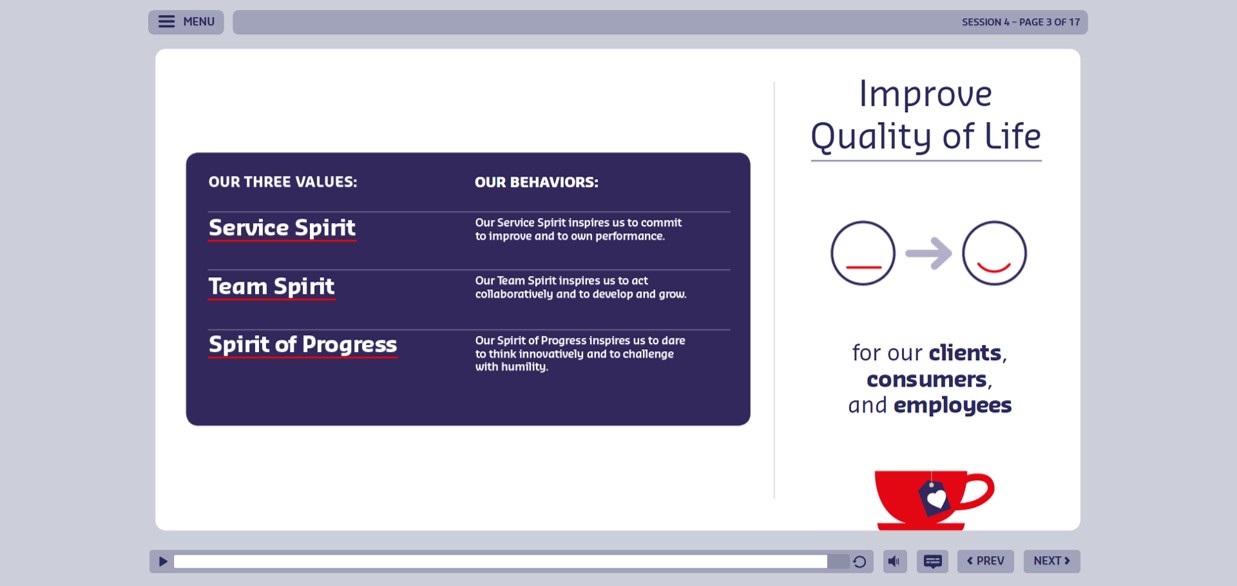

An animated graphic from the course, timed to the voice-over narration — Movement and visual emphasis supported the spoken content instead of large blocks of text to read.

The custom interface, designed from the mockup, set the course’s look and feel. I developed a custom menu that learners could open at any time to view a list of all course pages. Each page included a check mark to indicate completion. A Storyline variable controlled the completion state for each page, allowing the menu to function as both a navigation tool and a visual progress indicator.

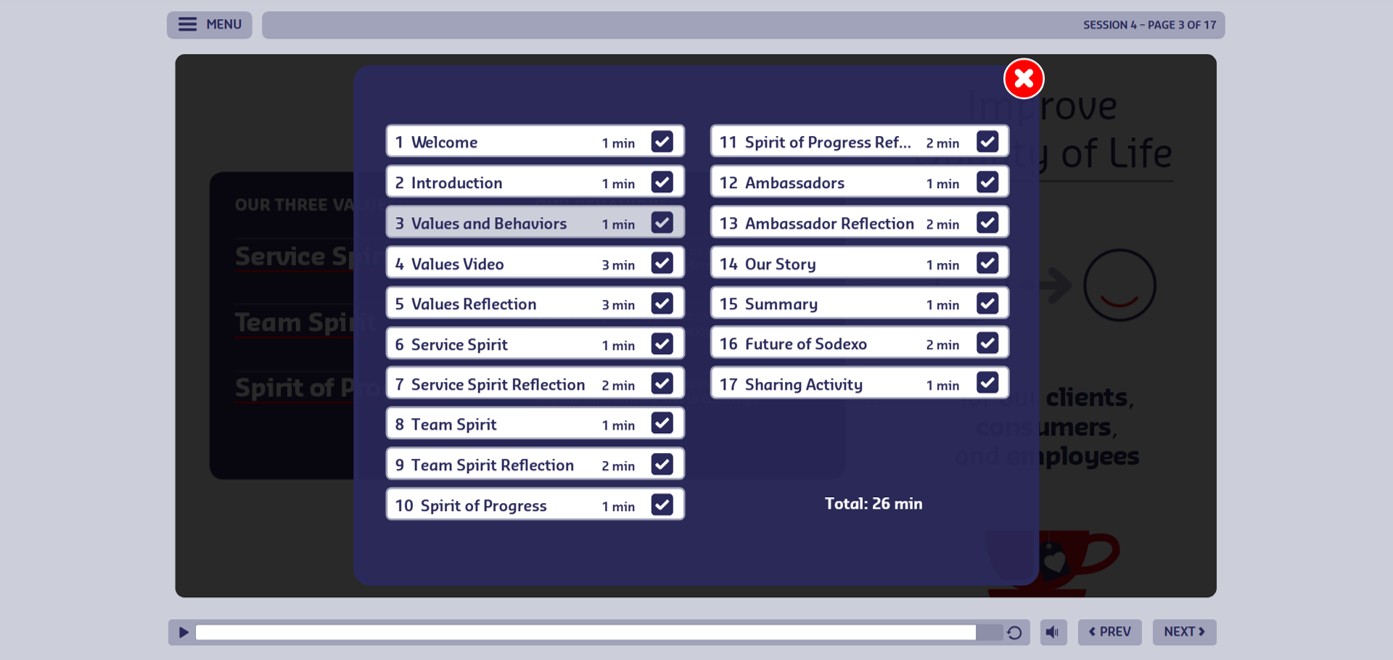

The custom course menu listing every page with a completion checkmark — A Storyline variable drives each page’s completion state, so the menu doubles as a progress indicator.

Reflection & Personalized Output

After key content, the course posed reflection questions that asked learners to connect the concepts to their own work and behavior. Responses were typed into text boxes and stored in Storyline variables.

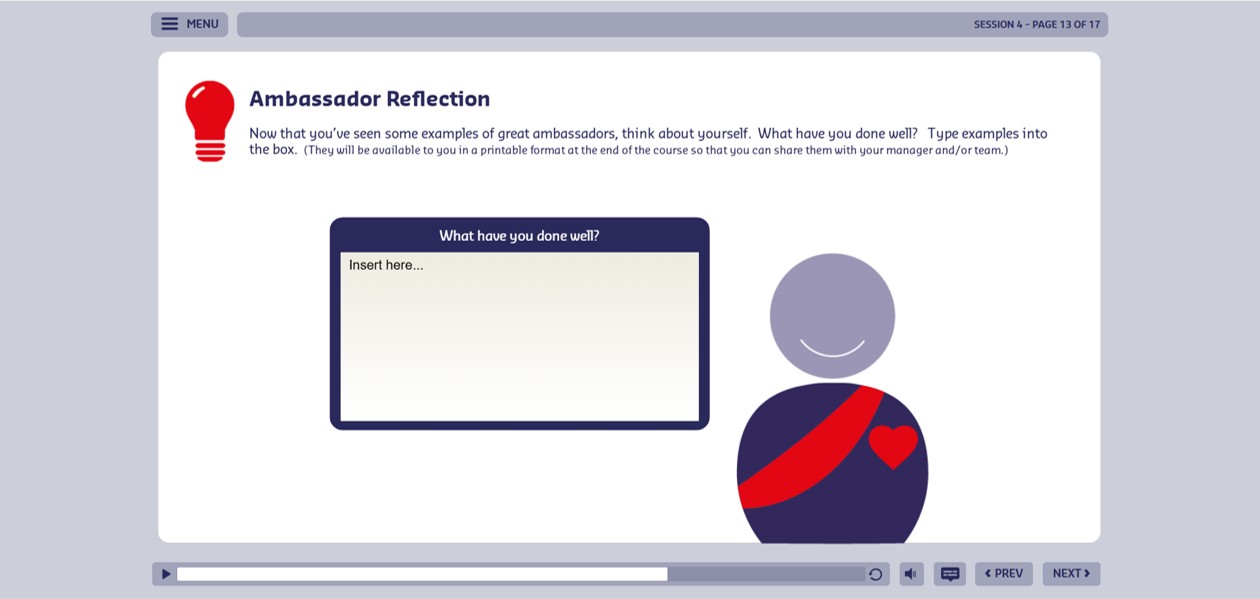

A reflection screen where the learner types how a concept applies to their own work — Learners record how each value shows up in their own work; entries are stored for the end-of-course output.

At the end, learners could review their reflections and print them — HTML and JavaScript generated a dynamic page that pulled the variable values in and formatted them for printing, turning the learner’s answers into a personalized take-away.

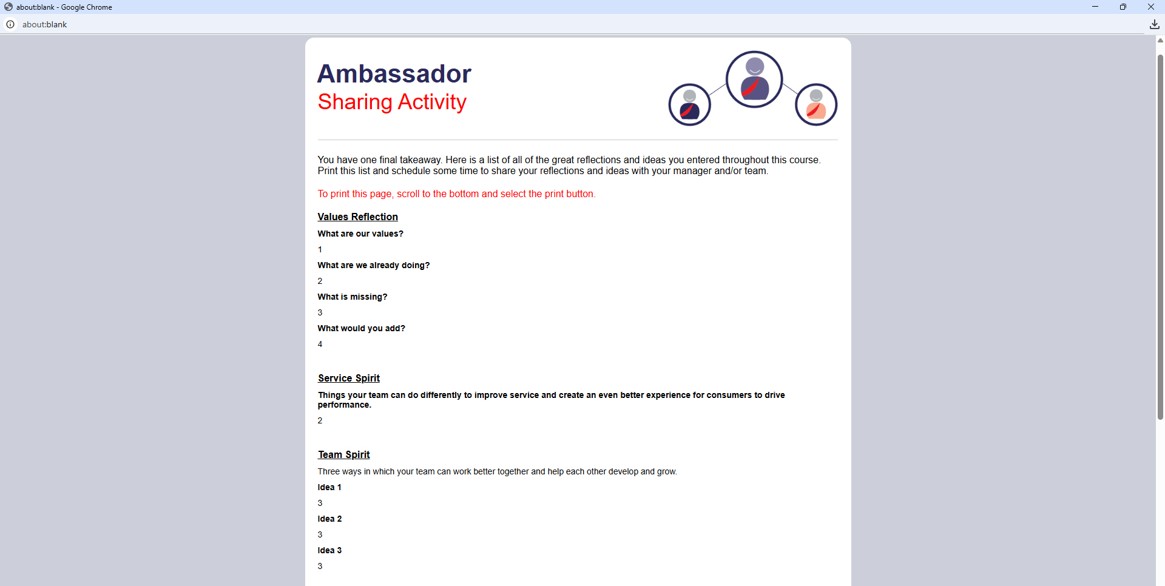

The generated personalized reflection page, formatted for printing — HTML and JavaScript pull the Storyline variables into a formatted page the learner can print and share.

Technology & Development

Articulate Storyline

Primary platform — custom interface, navigation, variables, triggers, text-entry interactions, and progress functionality.

Custom UI / UX

A visual mockup and custom interface established the look and feel and kept the experience consistent.

Animation & Narration

Voice-over paired with animated graphics and timed text for a more engaging experience than read-and-click.

HTML + JavaScript

Generated a dynamic page from Storyline variable values, presenting the learner’s reflections in a print-ready format.

Business Impact

Transformed static source material into a more engaging digital experience using narration, animation, custom interaction, and reflection.
Created a custom Storyline interface with a distinctive look and clear navigation and progress visibility.
Encouraged learners to connect company values to their own work through guided reflection questions.
Produced a personalized end-of-course reflection output by passing Storyline variable values into a dynamic HTML page with JavaScript.

What I Learned

This project strengthened my ability to combine instructional design, visual design, Storyline development, animation, and custom web functionality into one cohesive experience — and showed how Storyline variables, triggers, HTML, and JavaScript can extend a course well past its usual limits.
